Gauging System

| Product Description

Start in 2002, has been applied in Plastic, Non-woven, Coating, Paper industry. The gauging system has been exported to Australia, Russia, Malaysia, Brazil, Sweden, and Taiwan. It is first company in accordance to the product standards (Standard NO.: Q/HY01-2005;Q/HY01-2012;HY/01-2016), and passes CE certificates. Happyway Automation Co., Ltd. has the full intellectual property rights of the hpw-2002qcs gauge system.

After twenty years of application accumulation in the web industry, our company's hpw-2002qcs quality control system (online thickness gauge) has been updated and iterated to the current hpw-2022qcs version. The system is more powerful, rich and better robust.

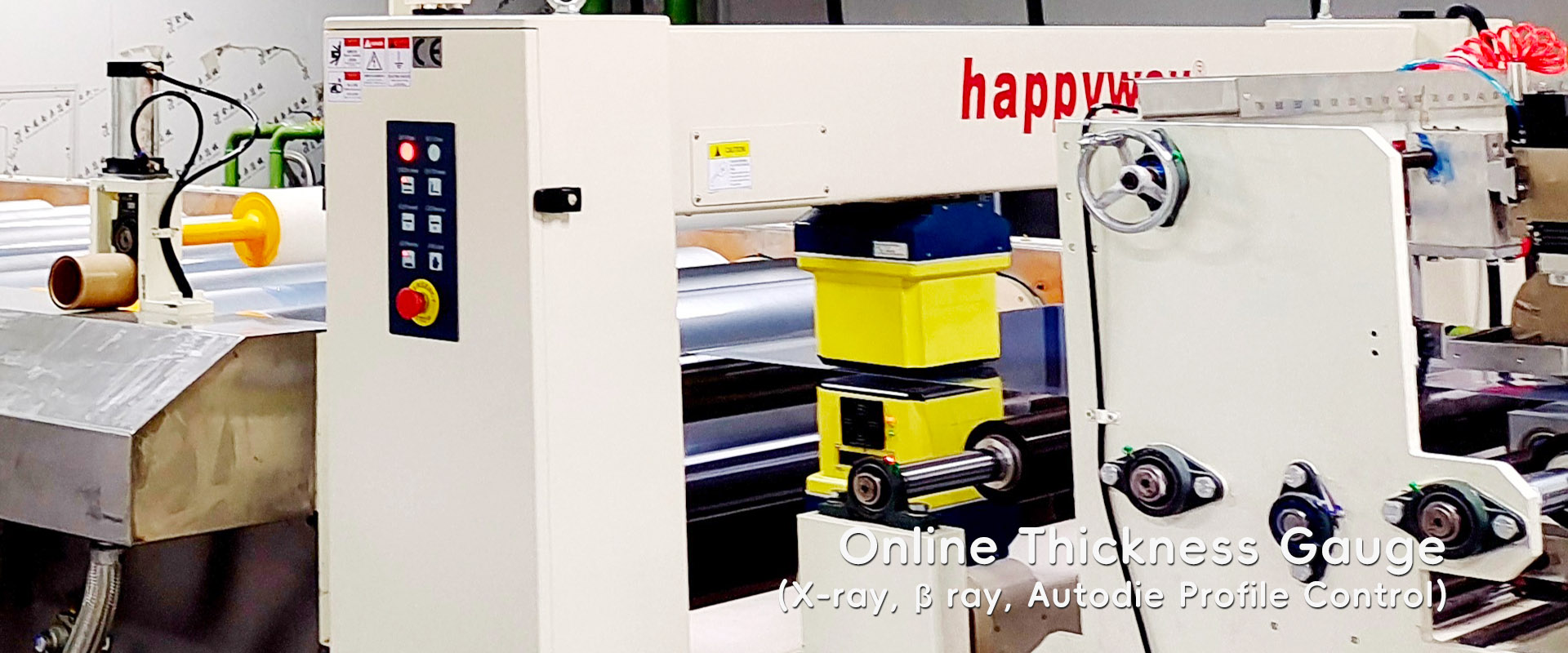

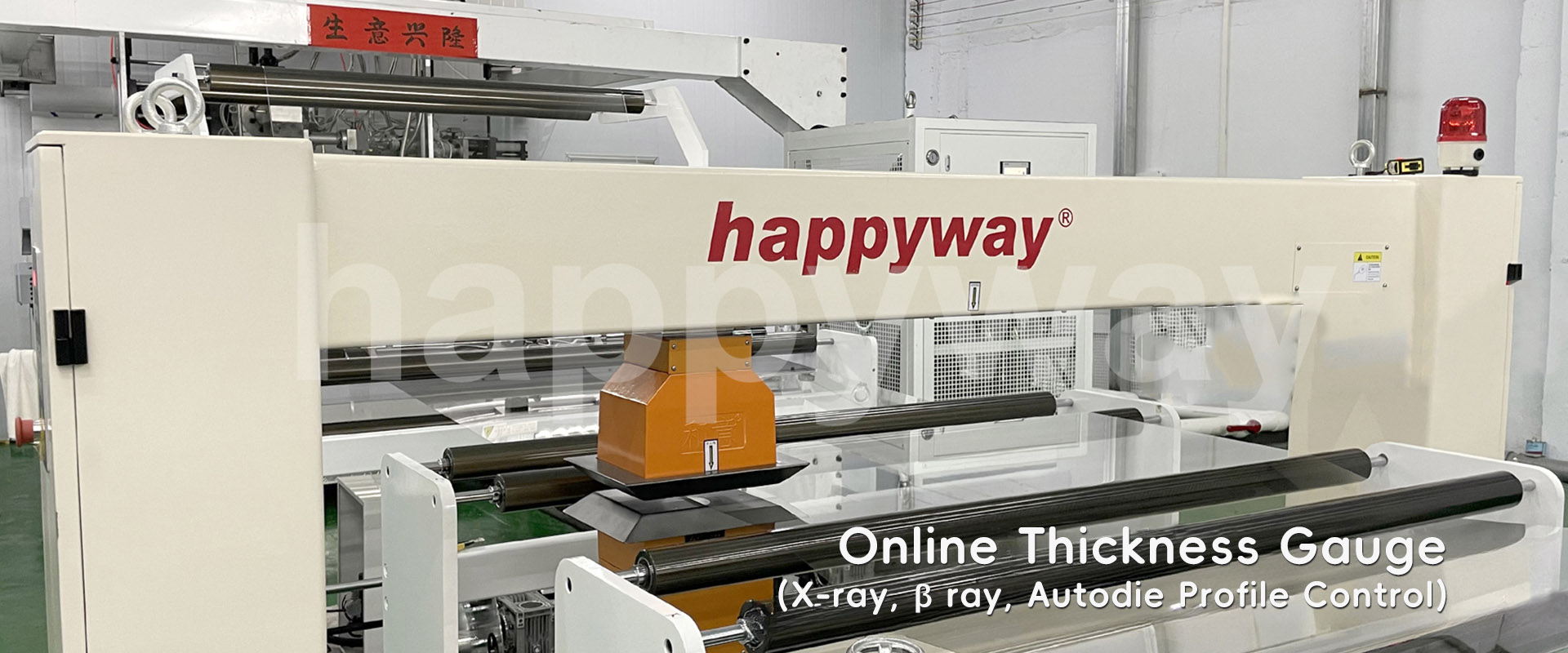

Scan Frame


High Quality AC motor, coup with imported drive or inverter to ensure position precision connects to a high precision encoder;


 Adjustable automatic scan with speed and range;


Break-off detection and automatic back to home position;


Scanner available with “O”, “C”, “T” and ring type.


Advanced linear rail with high reliability, automatic lubrication and easy maintenance;


Switchable manual/auto scan;


Automatic calibration;

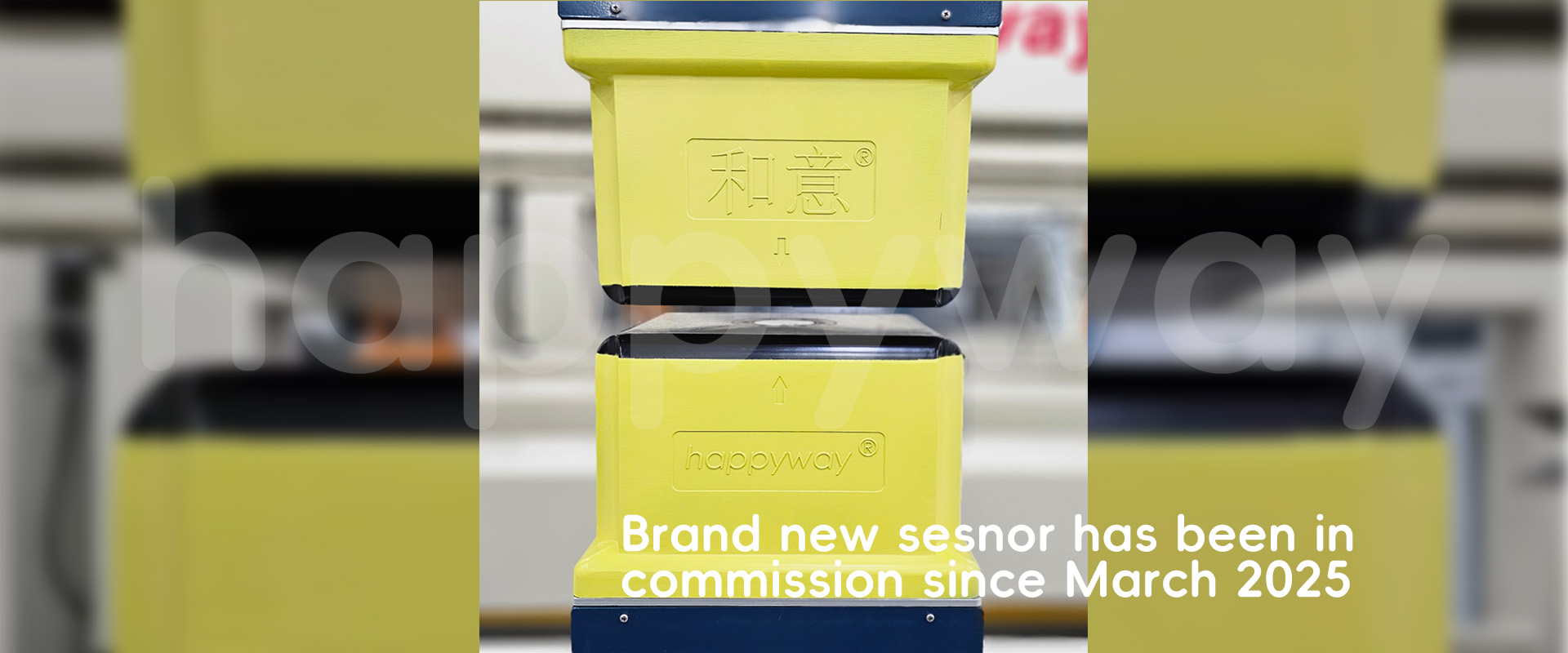

Sensors

Non contact Beta ray, X-ray, inferred, and Laser sensor choose for different applications.


Penetrating Sensorβ-Ray

Measurement Range: 10-10000gsm

Ray Source:85Kr;  Sr90

X-Ray

Measurement Range: 5-2000 μm

Low energy X-ray:<5000eV

InferredMeasurement Range: 0-30% (Moisture)
Reflection SensorInferred

Measurement Range: 0-90% (Moisture)

0-1000 gsm (Coating)

LaserMeasurement Range: 0.01-100mm


· Advanced industrial PC and PLC controller ensures high reliability and anti-interferences withstand in harsh environment.

· User friendly interface

· Real-time display of colorful charts and data

· Statistical report with accessible history data by inquiry

· CN/EN language support

· Advanced data processing and control algorithm


Automatic control

1.Cross Direction automate control: auto die, Calendar Roll, Coating Blade, Automatic Laying;

2.Machine Direction (MD) automatic control: Line Speed, automatic pump RPM, feeding roll RPM, extruding roll RPM, flow rate, pressure, temperature.
